Ballast B-1-431-REI264-NC

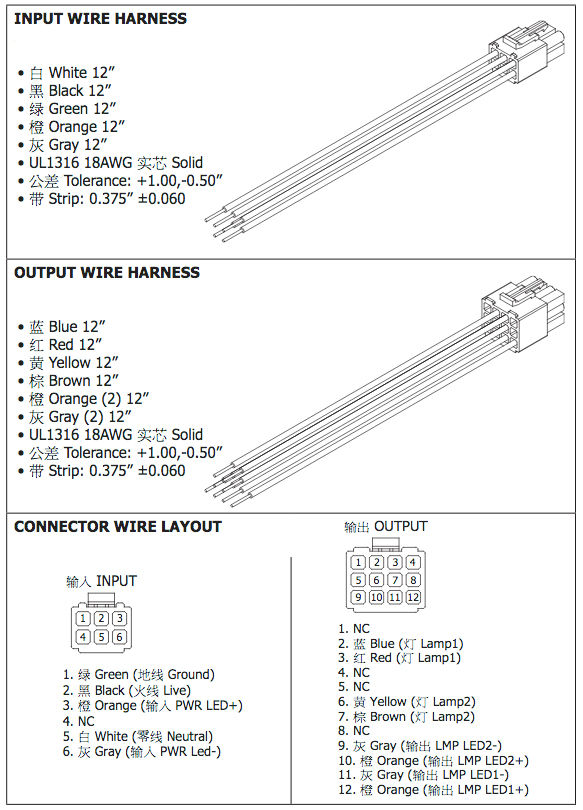

Electronic Instant Start Ballast (for Instant Start Lamps), 800mA nominal lamp current with an Arc voltage between 100V-180V, Input voltage of 100-240Vac, for 2/1 80W-155W Lamp, 50-60Hz, wire harness connectors and it's own power switch.

This Ballast is the direct replacment for the B-1-431-REI264

ELECTRICAL
• Start Time(sec): 1.3
• High Power Factor
• Ballast Shut Down at Open Load
• Internal Fuse
• Output Voltage U <280V
• End of Lamp Life Protection
• Not for Current Interrupting

EMISSIONS
(Conducted and Radiated Emissions)
• EN 55011:1998 - Industrial, Scientific, and Medical (ISM) Radio-Frequency
Equipment – Radio Disturbance Characteristics – Limits and Methods of
Measurement
• Meets FCC Part 18-307C (Class B) for EMI and RFI Consumer Limits
• EN 61000-3-2 Limits for Harmonic Current Emissions
• EN 55015:2013/A1:2015

PHYSICAL
• Solid Single Leads
• UL1316 18AWG
• Lead Tolerance +1.00-0.50, Strip 0.375” +0.06
• FR-4 PCB Dbl Sided Plated Thru Holes
• ON/OFF Rocker Switch
• Two LED Lamp Indicators
• LED Power Good Indicaton

SAFETY & CERTIFICATIONS
• UL 935 (Class P, Type CC, Type1 Outdoor, Type HL)
• cULus, CE, CCC
• Leakage Current to UL/935 Standard
• EN 61347-1:2001
• EN 61347-2-1:2001
• EN 61347-2-3:2000
• RoHS EU Directive 2011/65/EU&2015/863 Amendment (RoHS 3)
• Anti-Arcing
• Output Short Circuit Protection
• Output Open Circuit Protection
• Restrike Attempts = 2
• Inrush Current <40 AMPS
• Meets ANSI Standard C62.41 for Transient Protection
• Meets ANSI Standard C82.11 for Ballast Requirements
• Sound Rated A

APPLICATION
• Maximum Case Temperature 194ºF/90ºC
• Maximum Ambient Temperature 122ºF/50ºC
• Minimum Starting Temperature 0ºF/-18ºC
• Lamp Starts >50,000 Starts
• Remote Mounting 20 ft. Max. Lead Length, 18AWG Shielded or in Conduit
